TRUSS/RAFTER TO CONCRETE
no reviews for this product. Login to place a review.

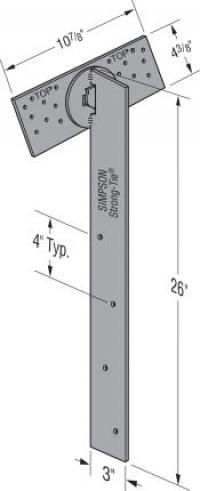

Retrofit Girder Tiedowns Sold per each The FGTR face-mount girder tiedown is a non-pitch specific girder tiedown that offers the highest uplift capacity for retrofit applications. The FGTRHL/R is designed for corner hip applications. Screw holes are configured to allow for double installation on a two-ply (minimum) truss. The product can be installed in a single application or in pairs to achieve a higher uplift capacity. Can be installed on roof pitches up to 8/12 or on a bottom chord designed to transfer the loads. FGTR -- only two of the four holes provided on each strap are required to be filled to achieve the published loads. The first Titen HD(R) anchor 1/2" x 5" (THD) shall be installed a minimum of 4" from the top of the wall. Anchors shall not be installed in adjacent holes.
- U/M
- / EA
- Price
- $130.74
- Part Number
- FGTR
- Manufacturer
- SIMPSON STRONG TIE CO.,INC.
- Quantity Available
- 6
