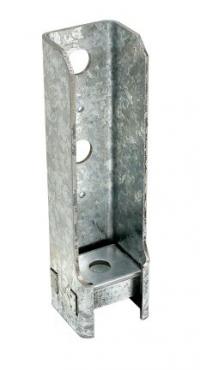

HOLDOWN ANCHOR 3/4" BOLT, 5/8"

Holdowns Sold per each Hot Dipped Galvanized  Material: Base 3/16" Gauge
10 Dimensions (inches):  HB 5-1/4", SB 3", W 2-1/2", H 9-3/8", B 2-1/2", CL 1-1/4", SO 2"  Fasteners: Anchor Bolt 5/8" Stud Bolts (2) 3/4" Minimum Wood Member size (inches): 1-1/2" x 3-1/2", 2-1/2" x 3-1/2", 3" x 3-1/2", 3-1/2" x 3-1/2"  The HD3B is a light-duty holdown designed for use in shearwalls and braced-wall panels, as well as other lateral applications. Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015/2018 NDS, section 12.1.3.2) Stud bolts should be snugly tightened with standard-cut washers between the wood and nut (BPs are required in the City and County of Los Angeles) HD and HDB holdowns are self-jigging and will ensure minimum bolt end distance when installed flush with the sill plate Standard-cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors

MSRP

U/M

/ EA

Price

$46.62

Core

Part Number

HD5BHDG

UPC

Manufacturer

SIMPSON STRONG TIE CO.,INC.

Brand

ETA

Quantity Available

13
