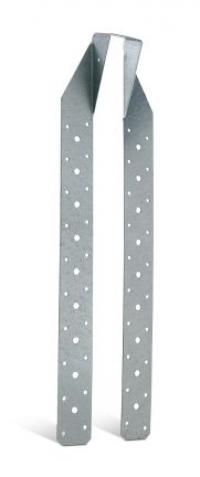

18 GA TRUSS/RAFTER HURR. TIE (D)

Hurricane and Seismic Ties Masonry and Concrete Connectors Sold per
each Zinc Plated Gauge 18 W 1-5/8" L 18-3/4" Fasteners (inches) To Rafters/Truss (2) 0.148" X 1-1/2" To GFCMU (6) 1/4" X 2-1/4"  To Concrete (6) 1/4" x 1-3/4"  Hurricane ties can be installed with flanges facing inward or outward. Hurricane ties do not replace solid blocking. When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.  H16 -- the H16 series has a presloped seat of 5/12 for double trusses. The presloped seat of the H16 provides for a tight fit and reduced deflection. The strap length provides for various truss height up to a maximum of 13 1/2" (H16 series). Minimum heel height for H16 series is 4".

MSRP

U/M

/ EA

Price

$6.20

Core

Part Number

H16

UPC

Manufacturer

SIMPSON STRONG TIE CO.,INC.

Brand

ETA

Quantity Available

Discontinued
